Stainless Steel Deep Drawing Services: Custom Metal Parts from China

Stainless steel deep drawing services transform flat metal sheets into seamless, hollow parts. We are a custom metal manufacturer based in China. Our factory has served global clients for more than 25 years. We have made over 70,000 different types of custom metal parts.

This article covers the process, our capabilities, and a real project example.

What Is Stainless Steel Deep Drawing?

Deep drawing is a sheet metal forming process. A punch pushes a flat stainless steel blank into a die cavity. The result is a seamless, cup-shaped or box-shaped part. “Deep” means the part depth exceeds its diameter. Deep drawing can create parts that regular stamping cannot reach.

Deep drawing differs from standard stamping. Stamping forms shallow features on flat sheets. Deep drawing pulls material into a deep cavity. This difference opens new design possibilities for engineers. Drawn parts also keep strong walls without joints.

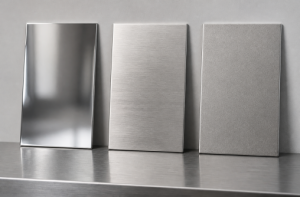

Common stainless grades include 304 and 316.

• 304 offers good corrosion resistance for daily use.
• 316 adds molybdenum for marine and chemical environments.

Both grades form well in our deep drawing process.

Material thickness also affects the process. Thinner blanks draw faster but need more care. Thicker blanks produce stronger parts but cost more.

Our engineers balance these factors for each project. Lubrication is another key point. It reduces friction and prevents surface scratches. We select the right lubricant for each grade and depth.

Why Choose Stainless Steel for Deep-Drawn Parts?

Deep-drawn stainless steel parts must resist rust and wear. The material keeps its strength through the forming process. Drawn parts have smooth surfaces and consistent wall thickness. They also reduce assembly costs because one piece replaces multiple welded parts.

The main benefits are:

• Long service life in harsh environments
• Excellent strength-to-weight ratio for structural parts
• One-piece construction with fewer failure points
• Food-safe and medical-grade options for strict industries

Our Deep Drawing Capabilities

Our factory focuses on sheet metal fabrication. We offer stainless steel deep drawing services for parts from small to large sizes.We run more than 40 stamping presses from 60T to 400T. Our single-point 400T press handles large and complex parts.

We also use 6kW laser cutting to prepare clean blanks. Continuous dies boost our output for high-volume orders.🔧Click here to view our complete list of equipment.→

One stroke completes a full part shape. This method keeps unit costs low at scale. Our skilled team handles in-house tooling design. We also offer prototype services before mass production. Our engineers review your design and suggest improvements first. This step prevents costly mistakes later.

We provide secondary services as well. We offer bending, welding, drilling, and surface finishing. This one-stop approach saves you time and logistics costs. Quality control runs through every step. Our ISO 9001:2015 system covers incoming material and final inspection.

We check dimensions, surface finish, and material certificates. Every shipment matches your drawing requirements.

Industries That Use Deep-Drawn Stainless Parts

Deep-drawn stainless parts appear in many industries:

• Automotive: fuel tanks, exhaust components, housings
• Medical: instrument housings, sterilization containers
• Electronics: enclosures, battery casings
• Energy: sensor housings, valve components
• Firefighting: nozzle bodies, pressure housings
• Marine: fittings and corrosion-resistant parts

These parts share one thing in common. They need strength, tight tolerances, and a long service life. Our team has experience across these fields. We understand each industry’s specific standards.

Project Example: Deep-Drawn Stainless Steel Bowl

A kitchenware client needed a deep-drawn stainless steel bowl. The bowl has a tapered body and a flat base. Its inner wall carries an embossed volume scale up to 900 ml. The base shows concentric rings and a ring of small holes.

These features come from deep drawing plus secondary operations. We formed the bowl, embossed the scale, and punched the holes in one factory. This saved the client extra logistics and supplier coordination. Every shipment matched the approved sample.

This case shows our multi-process capability. Deep drawing creates the bowl shape. Embossing adds the measurement marks. Punching makes the base holes—one factory, one quality standard.

Design Tips for Deep Drawn Stainless Steel Parts

Good design makes deep drawing easier and cheaper:

• Use generous corner radii on flanges and bottoms
• Keep drawing depth within three times the part diameter
• Choose 304 or 316 based on the working environment
• Add small draft angles for easier part removal
• Avoid sharp corners that cause cracking

These tips help you control cost and quality from day one. Share your drawing with us. Our engineers will review it for free. We advise on material choice and tooling design. You get a professional opinion before any commitment.

Frequently Asked Questions

What is stainless steel deep drawing?

Deep drawing is a forming process that shapes flat stainless steel into seamless cups or boxes. It suits parts that need strength and corrosion resistance.

What stainless steel grades do you use?

We work with 304, 316, and other common grades. Please tell us your application, and we will recommend the best fit.

What is the maximum part size you can deep draw?

We can handle most common sizes in production. Send us your drawing for an exact answer.

Can you handle prototypes and mass production?

Yes. We make samples first for approval. Then we build production tooling for volume orders.

How do you ensure quality?

We check quality at every step, as described above. We provide inspection reports on request.

What is your minimum order quantity?

We keep MOQ low for custom parts. Contact us with your drawing for details.

How long does tooling take?

Tooling time depends on part complexity. Our engineers give you a clear timeline before you commit.
