Metal Frame

Expert Custom Metal Frame Fabrication for Global Industries

Xinjiuxinji is a leading global supplier of precision metal fabrication services. we have capabilities to deliver tailored metal frame fabrication for industries demanding structural integrity, lightweight design, and complex geometries. Whether prototyping or scaling to mass production, we transform raw materials into robust, precision-engineered frames that meet the most stringent global standards.

Precision Framing Solutions:Material Options & Performance

Material	Thickness	Key Benefits	Typical Applications
Aluminum 6061-T6	1.5–20mm	Lightweight, corrosion-resistant	Robotics, aerospace frames, EV battery trays
Stainless Steel 304	2–30mm	Hygienic, high strength	Food processing equipment, medical carts
Carbon Steel A36	3–50mm	Cost-effective, weldable	Industrial machinery bases, shelving
Titanium Grade 5	1–15mm	Extreme strength-to-weight ratio	Defense, marine, and racing frames

✅ 0.01mm precision guarantee

✅ 100+ metal materials available

✅ Quote within 8 hours

✅ 72-hour delivery

✅ ISO 9001 certification

✅ Free drawing optimization service

Core Capabilities in Metal Frame Fabrication

Design & Engineering Support
- 3D Modeling & DFM Analysis: Optimize frame designs for manufacturability, weight reduction, and cost efficiency.
- Material Selection Guidance: Choose from stainless steel, aluminum, carbon steel, or titanium based on load-bearing, corrosion resistance, and environmental needs.
Precision Fabrication Technologies
- Laser Cutting: Achieve ±0.1mm accuracy with Trumpf TruLaser 5030 (6kW) for clean edges on frame components.
- CNC Bending: Amada HG-1003 press brake ensures angular precision (±0.5°) for brackets, enclosures, and chassis.
- Robotic Welding: Consistent TIG/MIG welds (AWS D1.1/D1.2 certified) for high-strength joints in structural frames.
Assembly & Integration
- Bolt-on or welded assembly for modularity.
- Integrated mounting points, cable management channels, and surface treatments (e.g., powder coating, anodizing).

Project Cases: Frame For Machinery

Production Technology And Process

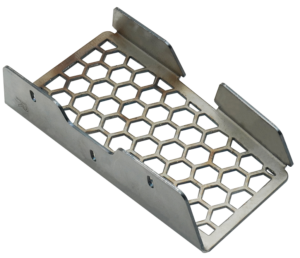

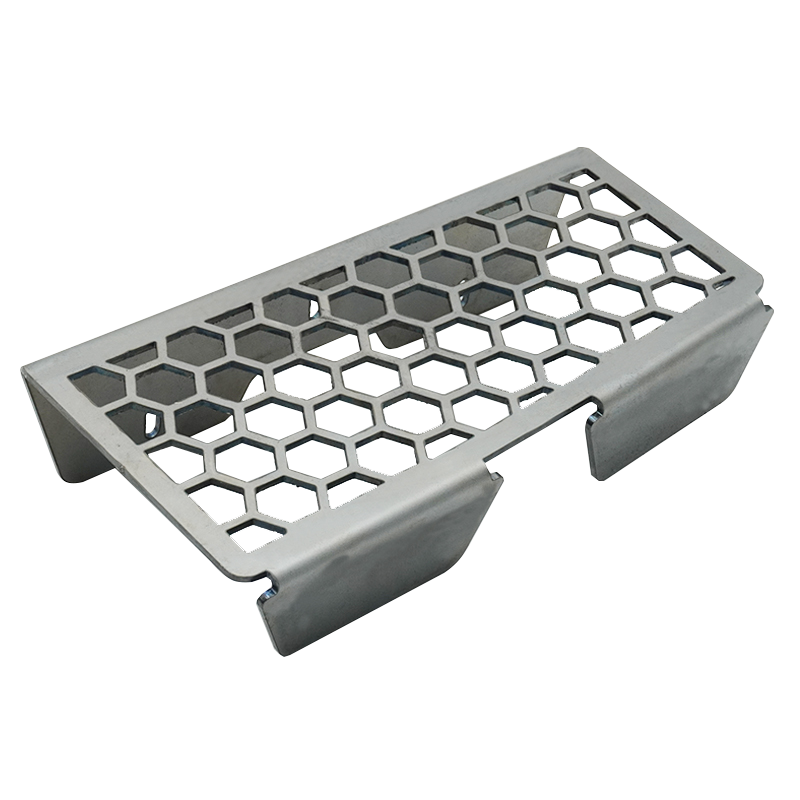

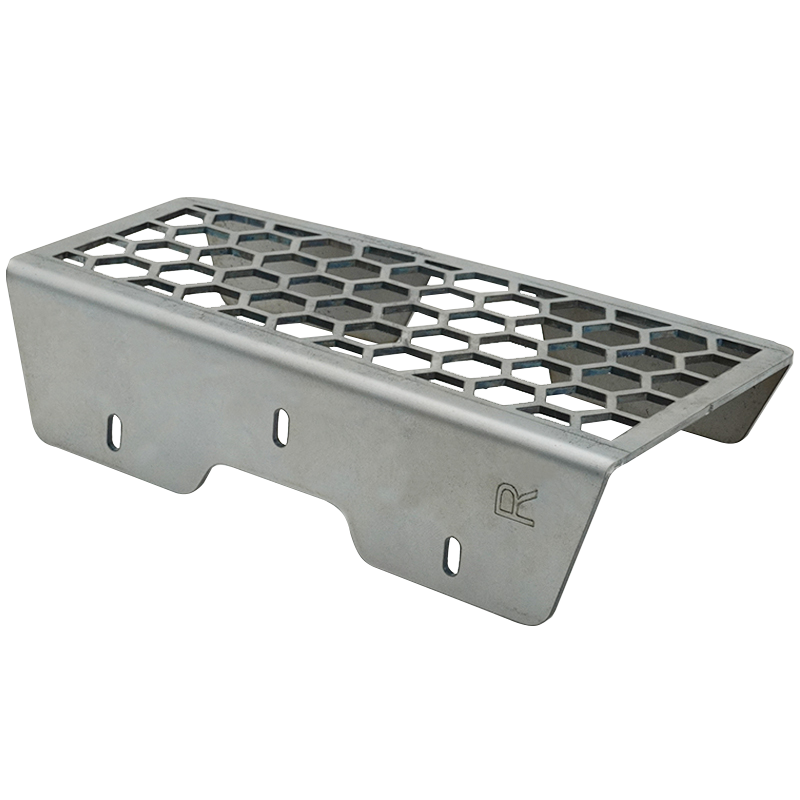

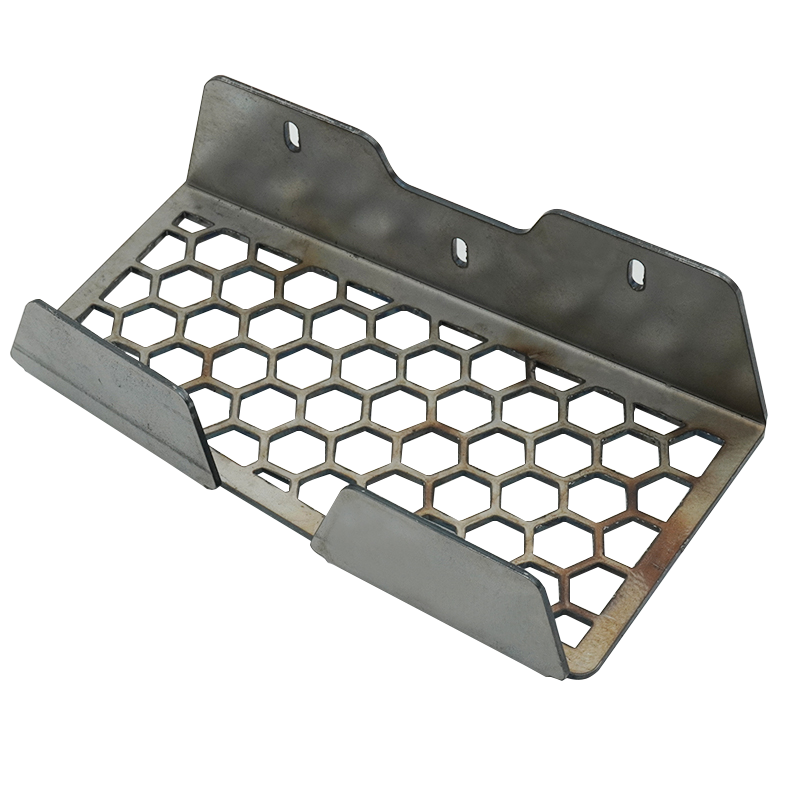

A 25 cm × 8 cm × 5 cm machinery frame in cold-rolled steel plate, produced by laser cutting, press-brake bending and laser marking, then assembled and dimensionally inspected before dispatch.

Read the full case — including the cut strategy, bend angles and inspection points — on the Frame For Machinery project page.
